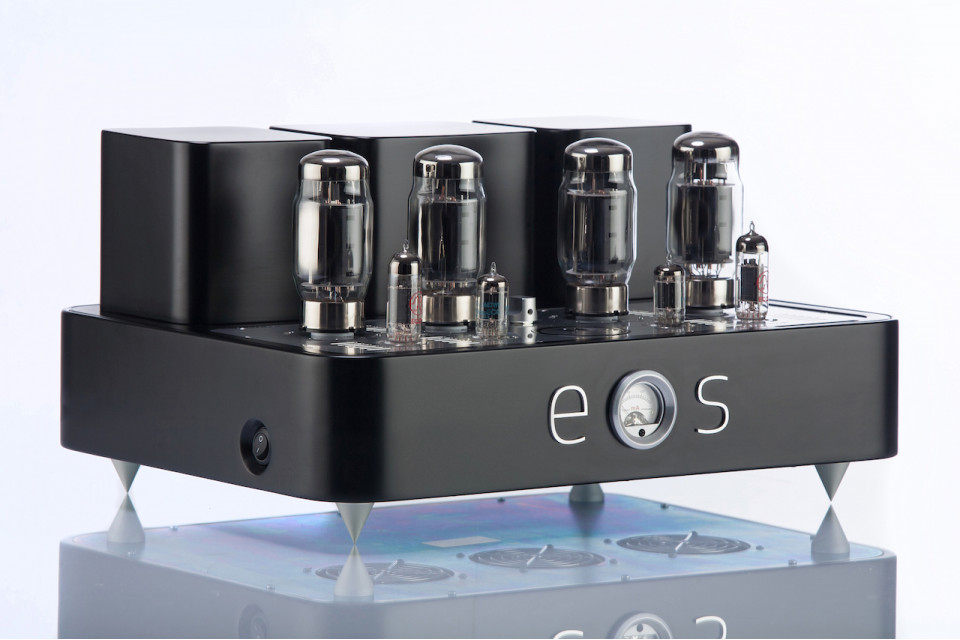

Trafomatic EOS power

The EOS power amplifier is the second one by power in the Trafomatic Audio productions. It is constructed as dual mono push-pull using well known KT120 output tubes.
Output power is 100W per channel, which is sufficient for most speakers, even those with lower than average sensitivity. This is a power amplifier, requiring preamplifier and opening endless possibilities for system configuration.

Based on previous work on negative feedback, -8dB reaction has been tuned to provide sound equivalent to a good Single Ended application. Cathode feedback was used as the most musical one. Bass is well controlled, dynamic response is excellent and this amplifier belongs to the very top of its class.

Well designed power supply made as separate unit utilizes 800VA toroidal transformer and C-L-C filter separated for each channel. Output transformers are based on a Double-C core configuration and Solen fast capacitors are used throughout. Adding well thought-out concept to the mix results in a recognizable high quality sound of our amplifiers.

The new modern styling of Trafomatic Audio amplifiers has been extended to this model as well,which makes a perfect sonic and visual fit with your room. An excellent starting point for full immersion in good sound. See and hear for yourself.
